Hot Selling Walls Expanded Rigid Polyurethane Equipment Insulation Foam Molding Machine

1 Set
MOQ
$3,100.00(1 - 4 Sets) $3,000.00(5 - 14 Sets) $2,500.00(>=15 Sets)
Prijs
Hot Selling Walls Expanded Rigid Polyurethane Equipment Insulation Foam Molding Machine
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Processing Type: Foaming Machine
Product Type: foam machine
Machine Type: polyurethane foam machine
Voltage: 110V/ 220V/230V,380V/400V, 50Hz/60HZ
Dimension(L*W*H): 1560 X 860 X 640 mm
Power (kW): 7.5KW
Weight (KG): 230 KG
Warranty: 2 years
Key Selling Points: Long Service Life
Showroom Location: Philippines
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shop
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pump
Driven Mode: Pneumatic
Air Source: 0.5~0.8 MPa ≥1.3 m 3 /min
Max Raw Output: 12 kg/min
Maximum Output Pressure: 17Mpa
Material: A+B
AB Material Output Ratio: 1:1
Pressure: High pressure
Application: walls, cold storage, roof, insulation tanks, road construction
whole power: 7.5kw
Keywords: polyurethane spray foam machine
Certificering: ce
After-sales Service Provided: Video technical support, Field installation, commissioning and training
After Warranty Service: Video technical support, Online support
Local Service Location: Philippines
Basis informatie
Certificering: ce
Betalen & Verzenden Algemene voorwaarden
Productomschrijving

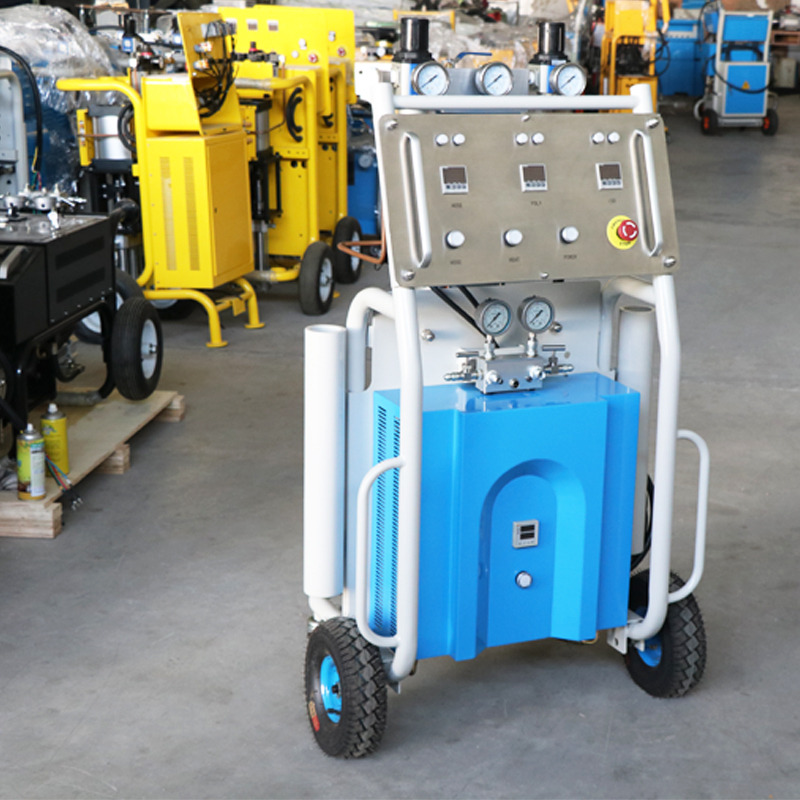

CNMC-E2 high pressure pneumatic polyurethane foam machine with 15m heat hose and spray gun.

1. Stable cylinder supercharged unit, easily providing adequate working pressure;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely;
8. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it works great in
cold condition;
9. Humanized design with equipment operation panel, super easy to get the hang of it;
10. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;
Specification
CNMC-E2 High pressure Polyurethane Spray Foam Machine
Model
CNMC-E2
Power source
Single/three phase, 110V/220V/380V/400V, 50Hz/60HZ
Heating power
7.5KW
Driven mode
Pneumatic
Air source
0.5~0.8 MPa ≥0.9m³/min
Raw output
2~12 kg/min
Maximum output pressure
17mpa
AB material output ratio
1:1
Packing size
750mm X 560mm X 1130mm
Machine weight
150kg
Standard Matching Tools
Spray gun
1 set
Feeding pump
2 sets
Heating hose
15meters
Gun connection pipe
2pieces
Feed delivery pipe
2pieces
pneumatic pipe
5meters
Spare parts
1set
tools box
1set
Product Description
Recommend Products
Customer Photos
Company Profile
Shandong React Chemical Industry Co., Ltd. Sestablished in 1980, is an important and a large construction engineering equipment joint-stock enterprise group. It has several wholly-owned subsidiaries, company headquarters is located at National High Tech Zone, Jining City, Shandong province.

Group's manufacturing area is compromised of 5000 square meters where 2000 people are employed full-timely. Its service scope covers critical economic fields such as construction engineering equipment, mining machinery, rock drilling equipment, steel etc.

CNMC Group got ISO9001 international quality system certification, European Union CE certification,SGS certification and Russian GOST certification. Scientific innovation is CNMC motive power. At 2000 year Our company and China Science and Technology University together established a steel products Rally testing laboratories, strive to enhance the product's impact resistance, in 2002 year the company and Shanghai Institute of Chemical Research jointly established experimental research center for the Chemical Material. Through exchanges and learn, CNMC mechanical, products in the stability of performance has been greatly improved.

More than 30 years of hard work and struggle, CNMC products have been exported to more than 127countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ONQUALITY" and explored a sustainable development path which combining the economic benefits and environmental protection together, and this make a great contribution to the development of Chinese machinery manufacturing industry and prosperity..
