Kenmerken

Specificaties

Condition: New

Processing Type: Foaming Machine, Foaming Machine

Voltage: 380V

Dimension(L*W*H): 685mm*630mm*1205mm

Warranty: 12 Months

Key Selling Points: Long Service Life

Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction worksÂ

Certificering: ce, ce

After-sales Service Provided: Video technical support, Online support, Engineers available to service machinery overseas

Power: 15kw

Weight: 185kg

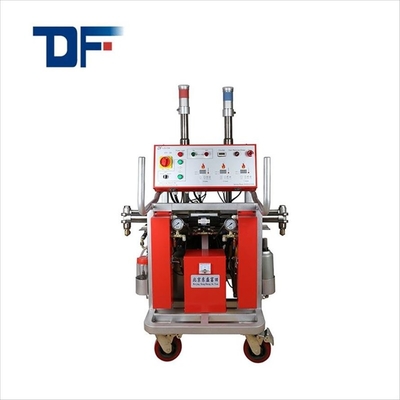

Product Type: foam making machine

Max. Fluid Temperature: 90â„ƒ

Max. Output: 10L/min

Max. Fluid Working Pressure: 1885 psi (13Mpa, 130 bar)

Max. Hose Length: 60m

Drive Mode: Air-driven

Dimensions: 685mm*630mm*1205mm

Basis informatie

Certificering: ce, ce

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Multi-plywood case suitable for high pressure polyurethane foam injection machin.

Supply Ability: 50 Set/Sets per Day

Productomschrijving

Product Detail

Type	DF-20/40
Maximum temperature of fluid	90℃
Maximum output amount	10L/min(15L/min)
Maximum output working pressure	13Mpa(21MP)
Heating power	15kw
Maximum length of hose	90m
Power parameters	380V-40A
Mode of driving	Air-driven
Volume parameters	6856301205
Standard :one main engine, two feed pumps, one spray gun, 15-meter insulating pipe
Applications : polyurethane wall, roof,cold storage,tank, pipe insulation,,sound insulation of car, integration of hulls and so on.
